Driving(ish) home(ish) for Christmas.

Just before Christmas, following a tump-load of work by Andy Westgate, I collected the Gemini from Westgate Composite's site in Berkshire and dragged it back to Gloucestershire.

Here (above) you can see the scuttle extension/aeroscreen bolted in place and me wearing a decidedly crap jumper - Andy insisted on the "Happy Customer" photograph.

 Nothing new of note here (above or indeed below...)

 But here is the cut-out for the exhaust - part lined with heat-mat.

Oh, and although a 'Phase 2' project, while the car was with Andy we start to think about aero mods:

There now follows a hiatus while I rebuild the coffers a bit and get some domestic stuff done. The bottom-line is, I won't be out at Oulton in April - maybe Silverstone in August is realistic - after all, mechanically the car is 100% unproven.

TC

Spot the differences...

I appreciate that for anyone else (my wife included) these images hardly change. There is progress though.

Back-stays in place. The least said about body symmetry the better I think.

"Baby got back."

Yes, the boot doesn't close; thanks to Mr Newey and his E-type for this one.

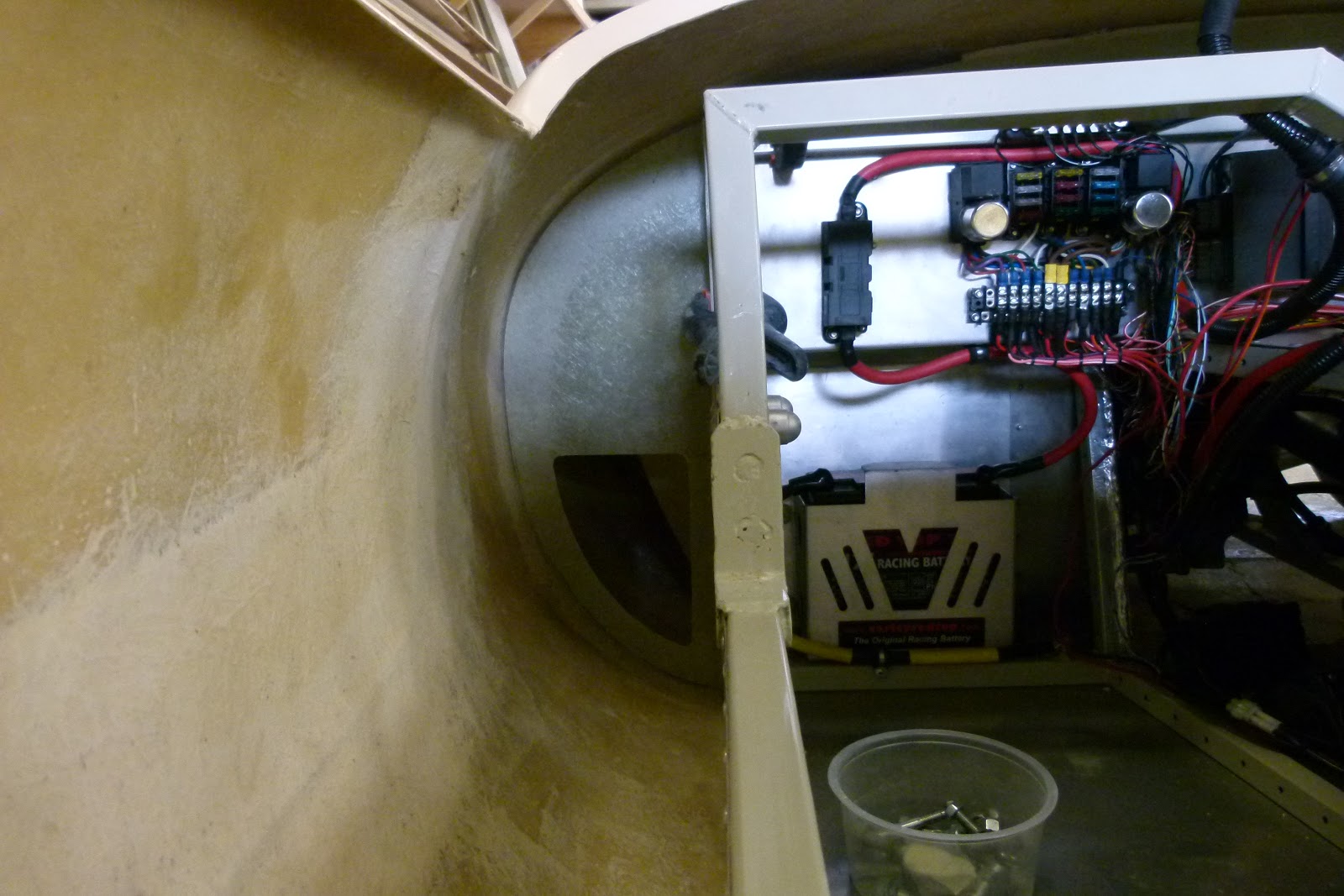

The tub has been remodelled around my shoulders. The raw GRP in the interior is now a less raw mid-grey too.

A retro touch.

A happy boy.

Structurally, the rear tub is permenantly fixed in situ and is rock solid (thanks to Andy - it mounts very differently to stock now.) The roll cage is bolted-in, except for three bolts on the driver's side of the front hoop.

TC

Life under the knife...

I'd like to be able to pause to add some sensible prose in relation to the work that Andy Westgate has been doing with such aplomb but I'm just too busy.  Instead here's some more photos with scant explanation.

First, here's some pictures of the 'aeroscreen' - a scuttle extension really.

Next, the clever little panels that will be scalloped around the main roll cage hoop.

The above square is a new part made from a mould taken from the body.  What lies beneath:

Next. the area around my shoulders is part-way through being re-modelled to give me more room.  I'd be lying if I said that I totally understood how this will look.  In Andy we trust:

Finally, my raised boot panel which is an idea unashamedly stolen from Adrian Newey's E-type.

Oh - almost forgot, the car has been seen in TKC Magazine and Complete Kit Car this month - in each case showcasing Mr Westgate's skills.

Andy's work is almost done.  I can't wait to actually do a bit on the car myself this coming weekend.

TC

Facetime

Andy Westgate continues his marvelous work; the car finally has a forward aspect.  I've always looked forward to seeing the car at this stage and I'm super happy!

Andy needs to finesse my cut-out but it still looks most-excellent in my view.  Lights will now be courtesy of LEDs.  How terribly modern.

TC

More soon...

Prize-winning marrow

Andy Westgate has been busy "putting a marrow on the bonnet."

He's also identified that due to the lowered ride height, there isn't any room for the headlamp bowls.

Thankfully we have a plan.

TC

Glass Re-reinforced Plastic

A whole two months-on from my last post: I've done absolutely nothing.  This doesn't mean that the car isn't progressing however.  I'd reached the conclusion that I was going to really struggle to fit the bodywork.  I was concerned about a lack of space, a lack of time and most-of-all a lack of ability and knowledge when it comes to fibreglass.  I'd spoken to a couple of Gemini owners who each said that they'd had to make some modifications to get everything to fit.  I was out of my depth.

I spoke to a couple of people who might be able to do the work for me and ultimately decided that Andy Westgate at Westgate Composites was my best-bet.  I have no doubts that I made the right choice.  Andy's work and communication has been absolutely first-class.  There is still quite a lot of work to do but he is definitely getting there.

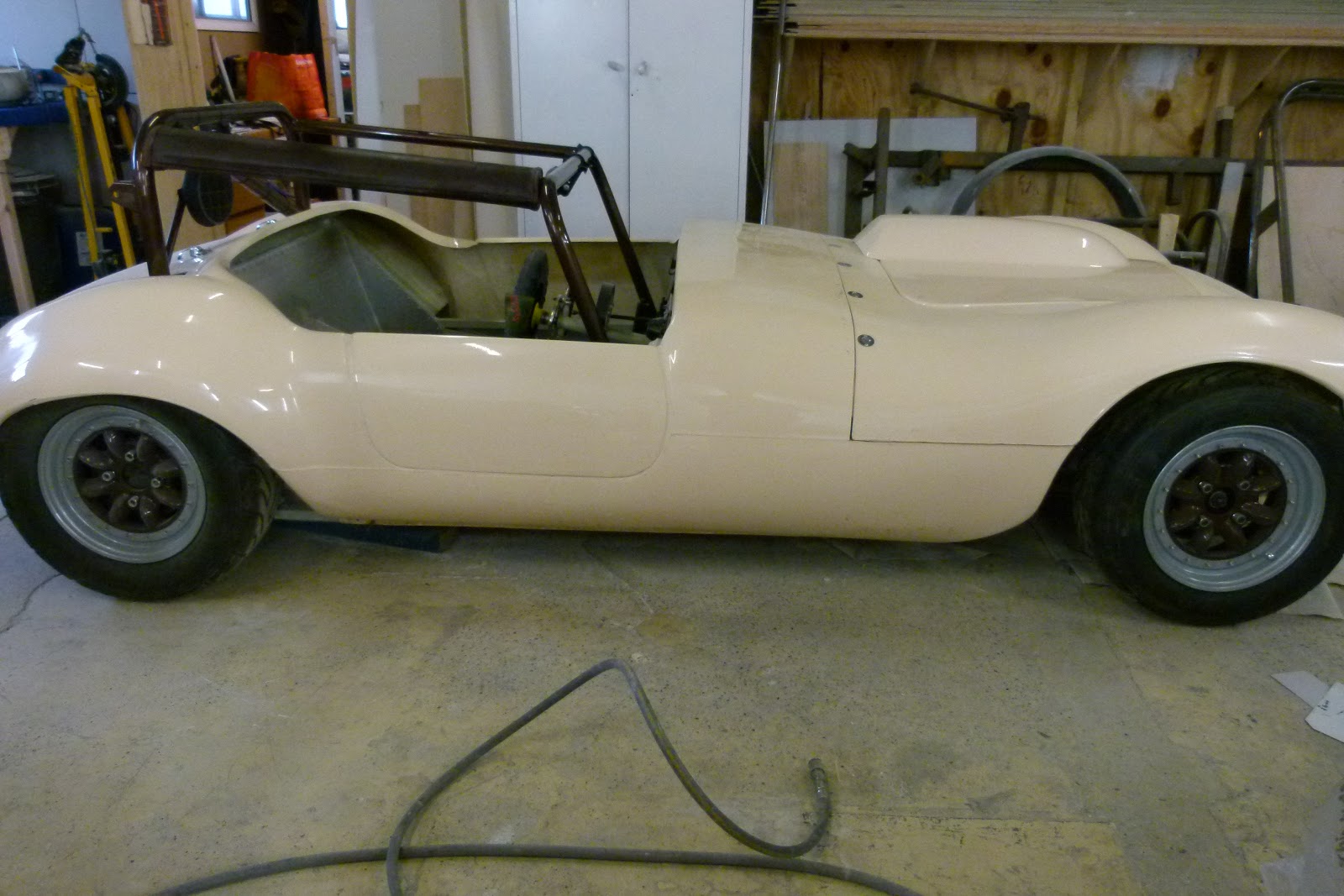

Andy started by seeing how everything lines-up,

The wheels provide the best reference points in each plane - the bodywork is certainly not 100% symmetrical.

Of course I'd say this, but the colour scheme just works.

You'll notice that the bonnet needs a bulge.  It actually needed a lot more work,  It was too wide (a common Gemini issue apparently) and concave (probably due to my storage.)

This is seemingly bread-and-butter for Andy though.  He's so accomplished working with GRP.  Both to help the body fit, attach it to the chassis and also to reduce the amount of subsequent aluminium panelling required, Andy has made a number of improved bulkhead panels.

These panels aren't finished at this stage, but it is remarkable how well Andy has got things to fit. You can see that the area behind where my shoulder will be has been cut-back quite significantly. There is still some to come - despite being vertically-challenged I've built the car so that I sit as far back as possible to hopefully help balance and grip.

The latest images from Andy show the basic shape of the new bonnet bulge - he's going to glass that in this week before ultimately painting the bonnet to match the gelcoat.  I'm absolutely thrilled with all the work thus far and I'm so relieved that I haven't tried to do it myself.  I think I would have lost patience and set the whole lot on fire by now.

I can't wait to see the car with the roll cage fitted - I've seen the car clothed and I've seen the car caged - but never caged and clothed.

TTFN
TC

Getting RC

Where would the car builder be without EBay? I can't imagine what a pain it must've been in the "good ol' days" to obtain random parts; no wonder kit car shows used to be so numerous and busy.

My latest online-find is a track rod-end for a radio-controlled car. In my case, alongside some rod-ends, it serves as a stay for my throttle-cable mount.

Of course, it doesn't need to be adjustable or indeed made with spherical bearings. The parts are quite convenient however.

And so, I've just wandered into the house  having finished adjusting the throttle cable. It all seems to work, albeit it is rather closer to the end of its adjustment than I would have ideally liked.

TC

Throttle enable cable fable...

My throttle cable assembly is one part of the car that has been in the design phase for literally years. At last I've been able to piece together the critical parts.

The generic cable from Venhill uses the welded-on nipple fitting in the standard throttle roller fitting. The cable then travels through the recycled Yamaha bolt-in ferule before travelling through the Venhill outer until it reaches the threaded cable adjuster which is mounted in a fabricated stand-off tower using a nice grommet from CBS to seal it off while allowing the thick-end of the adjuster to travel into the tower.  The cable exits the adjuster then travels 90 degrees around a special machined acrylic rolling-shaft before joining to the pedal by means of a Venhill U-shaped fitting, bolt-on nipple-end and a rose-joint.

It needs some fine-adjustment and a brace for the tower but works a treat.  It will sound silly but as this is all of my own design (with the goal always being a smooth, long-travel pedal) I am rather pleased.

Now to try to find a very short turn-buckle or similar to act as the brace for the tower...

TC

Aluminium Fab-ulous-rications

The car was away for three weeks in the end. Andrew at Allisport was a bit behind with a couple of jobs and then had a significant piece of work dropped on him by one of his largest customers.  This didn't pose a big problem - I did some family stuff and even some dreaded DIY.  Plus, as one friend put it on seeing the photos, it was definitely worth the wait.  The quality of the work is amongst the best that I've ever seen.  I'm absolutely thrilled.

The biggest-ticket item by some margin is the main tank.  I'd not finished bolting it into place when I took the above photo.  It's pretty stunning - but this is not the clever/tricky bit.

You can hopefully see above and below how the fixing points have been fabricated and the way that the tank fits neatly in front of the axle.  Andrew and his guys seem to have done the unexpected i.e. taken a template that some would have laughed at and ignored and instead perfected the design without compromising the intent or the work that has been done thus far,  If you look really closely above, you can see how the Facet filter-hose-tail screws into the outlet.  It is spot-on.

The rest of the work is fantastic too.  The swirl pot reminds me of the Heineken mini-kegs that you can buy in Supermarkets.  What's not to like?

The water header tank and oil puke tank look suitably traditional to my eye too.  These all need mounting but that won't pose a problem once my new 6mm rivnut tool arrives,

Even the top-mounts for my oil cooler are a smarter design than I'd envisaged.  Of course the water pipework is first-class also.

So, if it wasn't wholly apparent already, I would not hesitate to recommend Allisport.  I would definitely use them again - and will indeed be popping-back for a couple of additions.

TC
